A breakthrough in resin-bound installations. Engineered to deliver strength, flexibility, and long-term durability.

Install Resin Over Existing Surfaces, Without Cracking or Compromise

Traditionally, resin-bound systems in the U.S. have required full excavation, even when the existing base (concrete, pavers, or tiles) was still structurally sound.Why? Because installing resin directly onto those surfaces can lead to reflective cracking, movement, and debonding — causing costly repairs or complete failure.

ACE ResiMesh changes that.

Originally developed for high-stress environments like highways, ACE ResiMesh is a high-performance composite made from glass fiber and polypropylene. It’s designed to bridge surface movement, reinforce joints, and create a stable, long-lasting base for resin-bound surfacing — without the need for digging out.

The result? Faster installations, lower costs, and stronger, more reliable surfaces.

FAQs

Brands we have worked with:

Why Installers Choose Ace ResiMesh

Here’s why more installers and property owners are choosing ResiMesh as the smarter foundation for resin-bound surfacing:

Overlay directly onto existing bases — no demolition required

Bridges joints and absorbs movement to prevent cracking and delamination

Reinforces the surface to extend the life of the resin system

Cut installation time, ideal for busy residential or commercial sites

Helps maintain permeability in SUDS-compliant resin systems

Minimal disruption, perfect where excavation isn’t practical

Explore Products

How ResiMesh Works

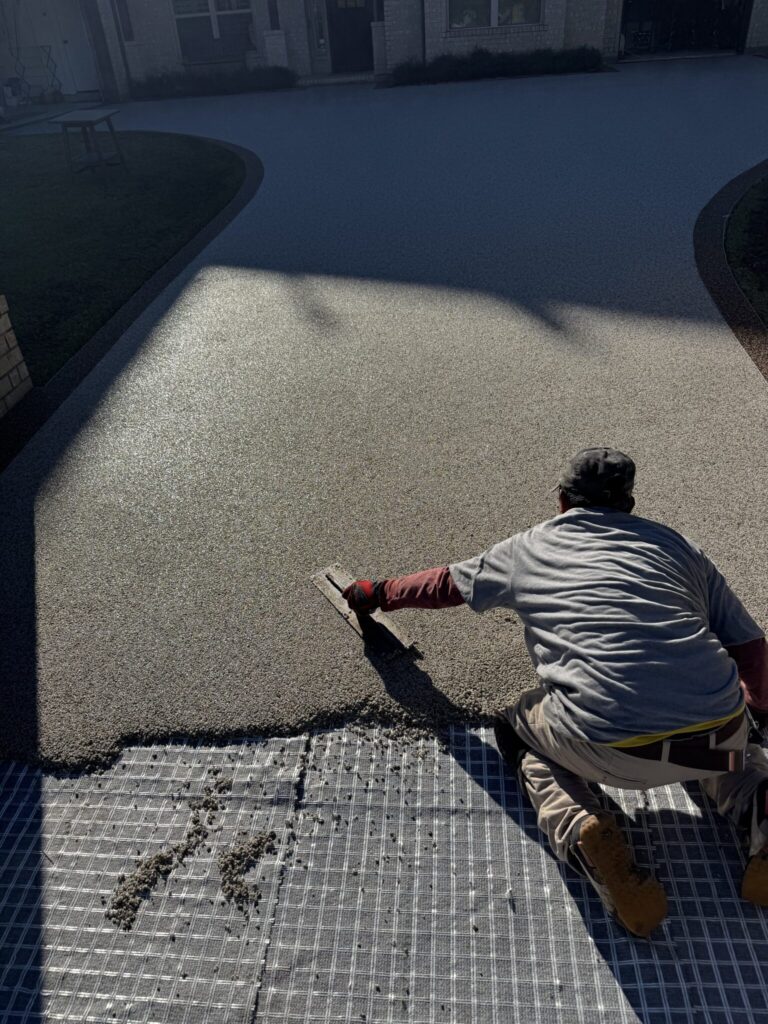

ResiMesh is installed directly onto a structurally sound surface, such as concrete, block paving, or tiles, and acts as a reinforcement layer beneath the resin bound system.

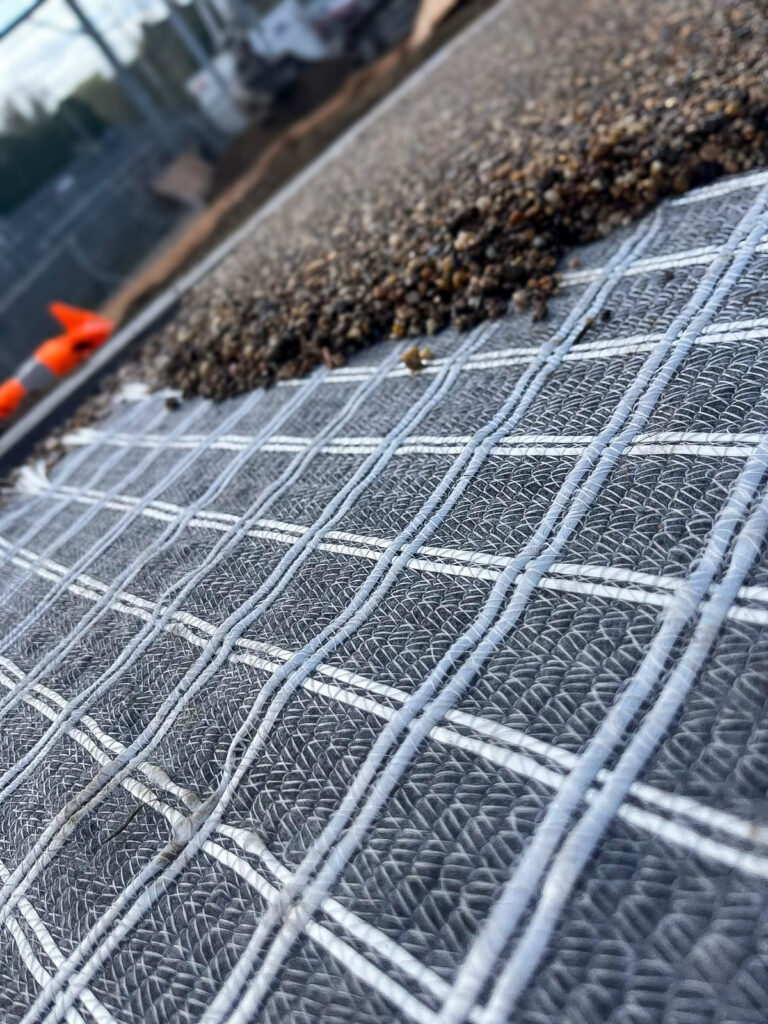

The mesh spans across hairline cracks, expansion joints, and minor imperfections, preventing reflective cracking from transferring through to the resin surface.

By allowing a small amount of flex, ResiMesh accommodates minor shifts or thermal expansion in the underlying base—essential for overlays on older substrates like block paving or concrete.

ResiMesh disperses pressure more evenly across the surface, helping to reduce stress points and prolong the life of the resin finish.

Ace ResiMesh acts as a decoupling layer when laid over existing surfaces like concrete or tarmac. It helps absorb movement in the base, preventing reflective cracks from appearing in the resin bound finish. This added flexibility ensures a longer-lasting, seamless surface — ideal for overlays and refurbishments.

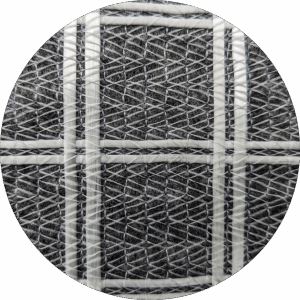

Material: Glass filament grid structure

Applications for ResiMesh

ResiMesh is the go-to solution for installers working on resin-bound projects where the existing base is solid but flawed. It’s ideal when you want to avoid the time, mess, and cost of excavation without compromising the quality of the finished surface.

Common Applications Include

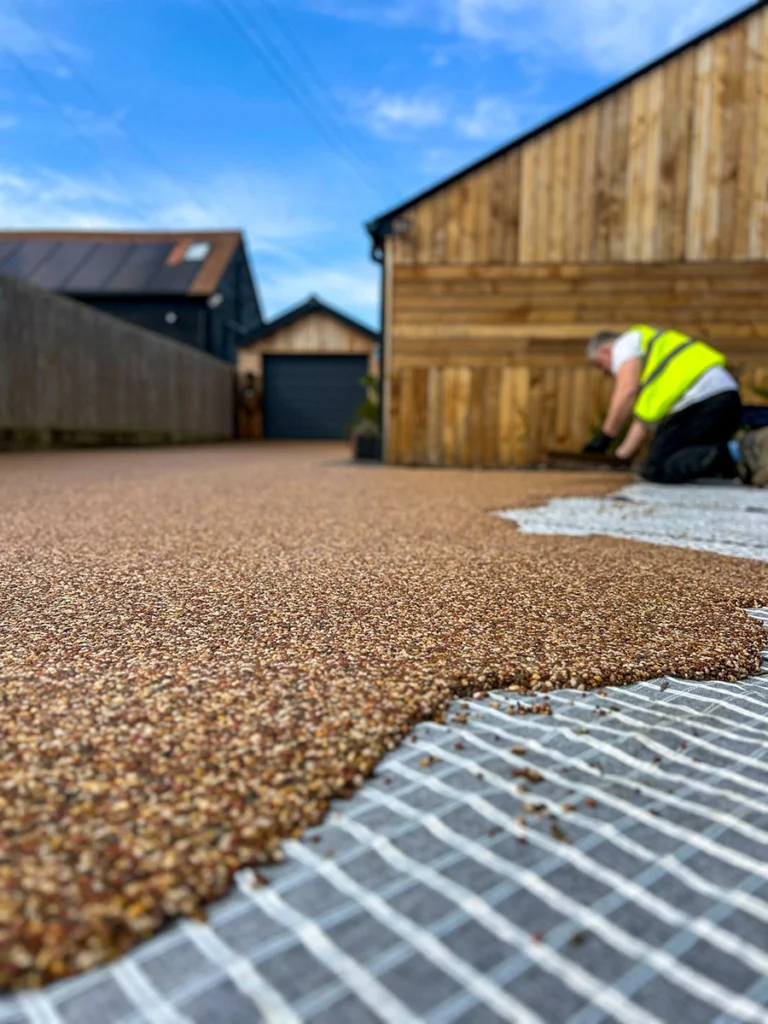

Perfect for upgrading tired block paving or concrete drives without digging them out. ResiMesh strengthens the base and prevents cracking, even under vehicle loads.

Quickly resurface cracked or uneven paths and patios to create smooth, permeable walkways without the need for disruptive groundwork.

Ideal for busy locations where minimal downtime is essential. Installers can lay resin over structurally sound bases with confidence that it will last.

Whether it’s a tight deadline or restricted site access, ResiMesh helps reduce project timelines and eliminate the need for heavy machinery or plant hire.

Install Over Compacted Aggregate, No Concrete Needed

With ACE ResiMesh, you can install resin-bound surfacing directly onto a well-compacted granular base (Type 1 or Type 3 equivalent) without pouring concrete or asphalt.

This approach is perfect for light-use areas like paths, patios, and pool decks — cutting time, cost, and materials while still delivering a strong, stable finish.

40% Stronger Than Standard Resin-Bound Systems

Ace ResiMesh Effect (UKAS Accredited Tested Samples)

Sample ID

Description

Flexural Strength (MPa)

Compressive Strength (MPa)

25-0699

Unmatted Ace Resin Bound

4.56

24.68

25-0700

Matted Ace Resin Bound (with Ace ResiMesh)

6.38

23.14

Ace ResiMesh increased flexural strength by ~40% (from 4.56 → 6.38 MPa), improving resistance to bending and cracking while maintaining comparable compressive strength.

Proven Performance with Ace ResiMesh

Exceeds F6 Screed Class – BS EN 13813 defines F6 at 6 MPa flexural strength. Ace Resin with Ace ResiMesh delivers 6.38 MPa, surpassing this benchmark. This means Ace Resin, when applied to Ace ResiMesh is Stronger than Standard Concrete – Typical unreinforced concrete achieves only 3–5 MPa in flexure. Ace ResiMesh pushes well beyond this range. (EngineeringCivil.org)

Why It Matters for Your Project

  • Reduced cracking – Higher flexural strength means greater resistance to bending stresses, thermal movement, and live loads.
  • Assured durability – Performance that not only meets but exceeds recognised European standards, giving long-term reliability.
  • No compromise – Flexural strength increased by nearly 40%, with compressive strength maintained.

Ace ResiMesh transforms standard resin bound surfacing into a reinforced system that performs above industry benchmarks—delivering strength, resilience, and peace of mind.

Technical Data

Ace ResiMesh is manufactured to the highest standards under an EN ISO 9001-certified Quality Management System, ensuring consistent performance and reliability. It contains no VOCs, making it a safer, more environmentally friendly choice.

Ace ResiMesh is designed to improve installation speed and reduce costs, providing an efficient, cost-effective solution for resin bound surfacing without compromising on durability or quality.

Functional Benefits:

  • Reinforcement (R): Enhances structural integrity
  • Stress Relief (STR): Reduces stress within the pavement
  • Specification (S): Prevents contamination from soil
ResiMesh Technical Data Sheet (US) ResiMesh Technical Data Sheet (ES - MX)
Characterstic Unit Value
Roll Width m 1
Roll Length m 100
Product Weight per roll kg 40
Index Strength (1) kN/m 100
Typical strain at failure (1) % 3
Elastic modulus of glass filments Gpa 80
Polymer of Paving Fabric   pp

(1) Index property based on testing the individual glass filaments in accordance with ASTM D 3822. Index properties will differ from testing results on the final product (e.g. to ISO 10319).

Frequently Asked Questions

Not usually — unless you’re using ResiMesh. Laying resin directly onto concrete or block paving without reinforcement can lead to reflective cracking, movement, and debonding. ResiMesh bridges these weaknesses, allowing you to overlay stable existing surfaces confidently.

ResiMesh can be installed over any solid, stable base that’s in good structural condition, including:

  • Block paving
  • Concrete
  • Tiled surfaces
  • Asphalt
  • Well-compacted granular bases (Type 1 or Type 3 equivalents) for foot-traffic areas like patios, walkways, and pool decks

It should not be used on unstable, crumbling, or failing bases.
If the existing surface is moving or breaking apart, it will need to be replaced before installation.

Yes — when used as part of a permeable resin-bound system, ResiMesh allows water to drain through as intended and won’t block or reduce surface permeability.

This helps your project comply with local stormwater management and drainage regulations often required by U.S. municipalities for patios, walkways, driveways, and other paved areas.

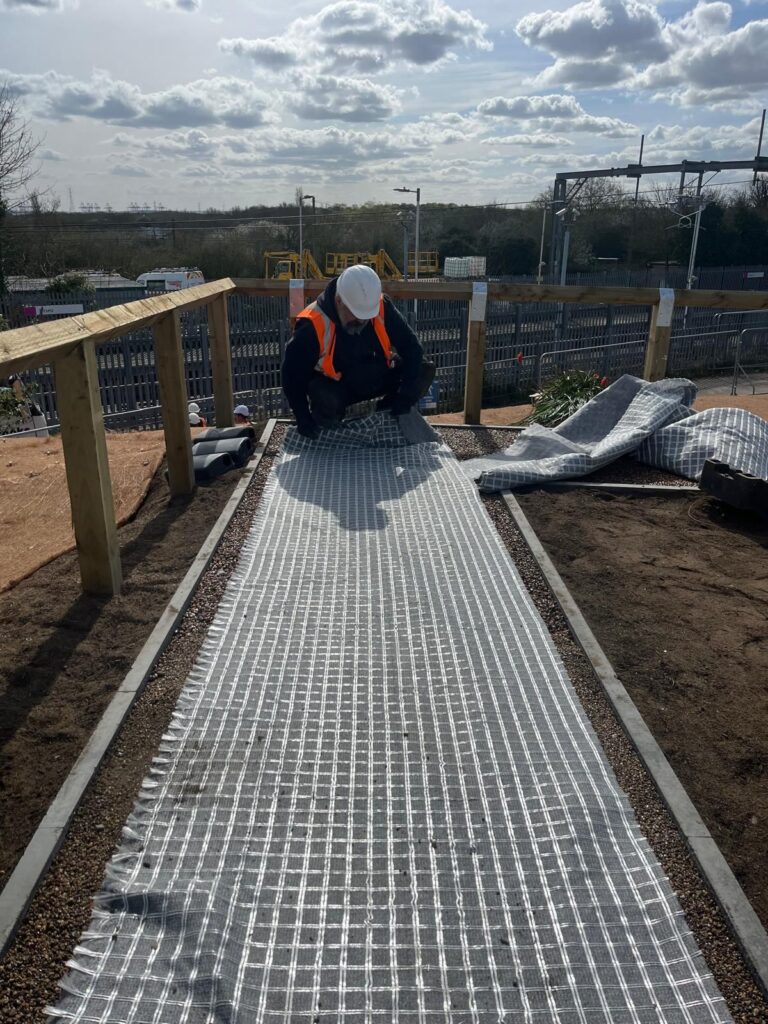

ResiMesh is installed directly onto the existing base before the resin-bound system is applied.
It’s lightweight, easy to cut, and quick to position, making it simple to handle on site.

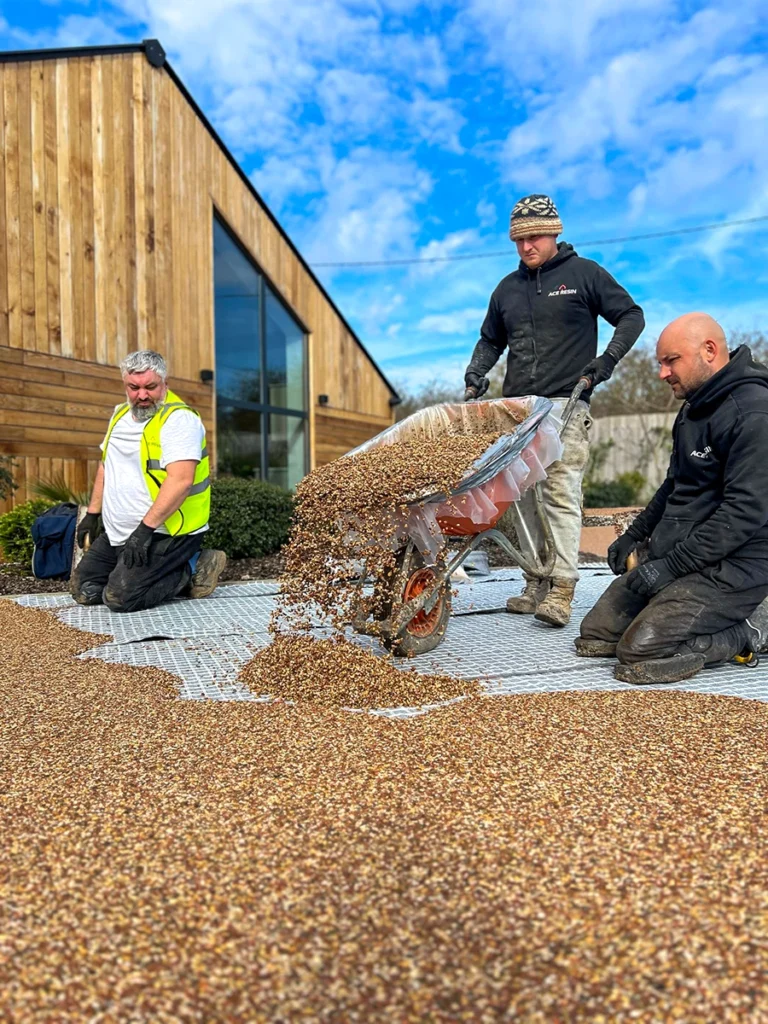

Just roll it out over the prepared surface, cut to fit, and secure it in place before laying the resin mix on top.

If you need guidance on best practices or installation support, our U.S. team can walk you through the process.

Absolutely. ResiMesh was originally developed for high-load environments like highways, so it’s more than capable of handling commercial use.

It’s suitable for everything from residential driveways and walkways to public sidewalks, courtyards, parking areas, and commercial entrances — anywhere you need a strong, stable base without full excavation.
